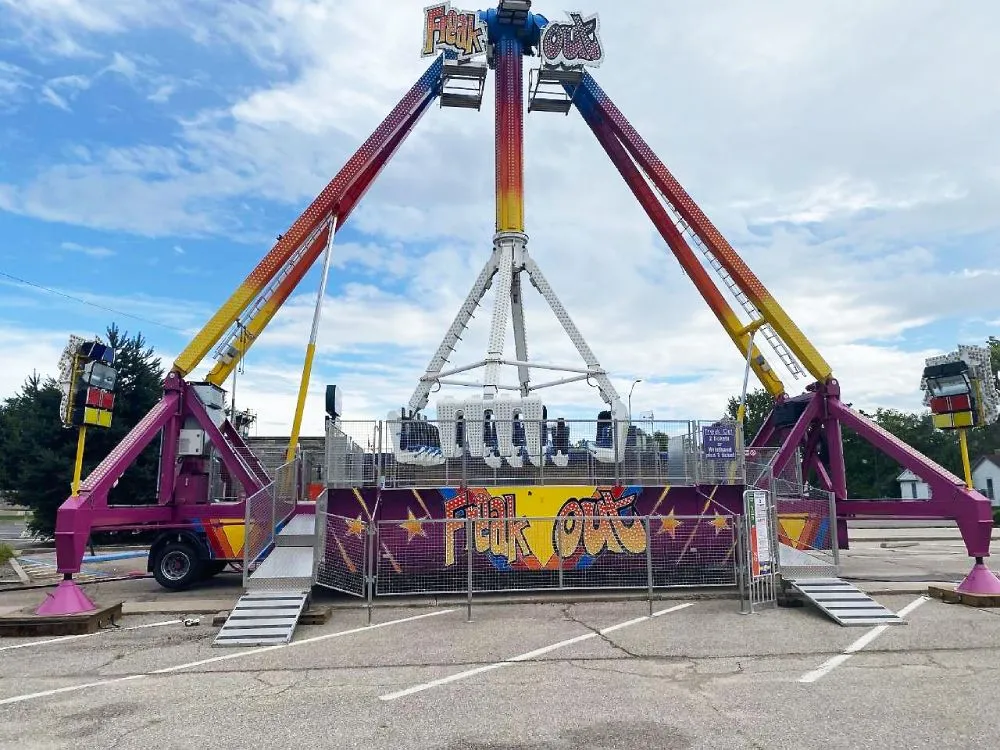

Portable Pendulum Rides Buyer's Guide: Hydraulic Setup, Anchoring, and Safety
Executive Summary for Buyers:
Primary Operational Goal: Transport a high-thrill anchor attraction between fairgrounds and deploy it in under 2 hours without cranes or specialized rigging crews.
Core Engineering Breakthrough: Fold-out structural main arm, self-erecting hydraulic towers, and integrated outriggers built directly onto a heavy-duty semi-trailer chassis.
Safety & Compliance: Engineered to meet ASTM F24 standards for ride safety and EN 13814 dynamic load limits with dual redundant hydraulic check valves and emergency braking.
Financial Efficiency: Reduces setup crew size to 1–2 operators and maximizes ticket yield during peak weekend carnival events.
When expanding a traveling fleet, investing in portable pendulum rides allows carnival operators to deploy high-thrill anchor attractions without incurring prohibitive setup costs. Pendulum attractions (also known as Frisbee rides or swing rides) are among the most popular thrill attractions in traveling carnivals. Their high-visibility swinging arc and rotating passenger gondola draw massive crowds and yield fast ticket turnaround.
Traditionally, operating a large pendulum ride required transporting loose steel trusses across multiple flatbed trucks, renting mobile cranes, and spending days assembling heavy overhead pivots. Modern trailer mounted carnival attractions integrate the main support tower, swinging arm, drive motors, and control station onto a single, highway-compliant trailer chassis.
Operational Efficiency of Modern Portable Pendulum Rides
Upgrading to trailer-mounted technology transforms the economic viability of operating high-thrill equipment across busy carnival circuits.
1. Rapid Setup Without Heavy Equipment
Deploying a mobile pendulum attraction requires no auxiliary crane services. Consequently, a two-person team can transition the entire unit from highway transport configuration to full operational readiness within 120 minutes.
2. Reduced Site Footprint and Permit Overhead
Traditional stationary models require extensive assembly zones and ground excavation. In contrast, trailer-integrated rides operate entirely within their own self-contained footprint, simplifying municipal permit approvals.
Engineering Principles Behind Hydraulic Portable Pendulum Rides
The core engineering objective of a portable pendulum ride is converting a massive structural footprint into a compact, road-legal trailer without sacrificing dynamic stability.
Folding Main Arm Mechanics
Hinged Structural Steel Trusses: The main pendulum arm folds into telescoping sections using high-strength Q355B structural steel.
Integrated Drive Hub: The rotating motor drive and central slewing bearing remain permanently mounted to the main tower, eliminating complex mechanical alignment during setup.
Self-Erecting Hydraulic Outriggers
Zero-Foundation Deployment: Heavy-duty hydraulic outriggers extend horizontally and vertically from the trailer frame, creating a wide support base.
Ground-Level Operations: Powerful dual hydraulic rams lift the main support column from horizontal transit mode to a 90-degree vertical stance in minutes.
Dynamic Load Anchoring and Wind Safety for Portable Pendulum Rides
Because pendulum attractions generate intense alternating forces during operation, dynamic load engineering is critical to passenger safety and equipment longevity.
Dynamic G-Force Distribution
During high-speed swinging, centrifugal force and gravity generate dynamic loads up to 3.5G. The chassis frame uses heavy-duty steel outriggers with wide steel footprint plates to distribute these alternating kinetic forces evenly across compacted soil, asphalt, or concrete.
Emergency Braking and Fail-Safe Checks
-
Redundant Hydraulic Safety Valves: Hydraulic outriggers feature dual pilot-operated check valves that instantly lock in place in the event of a hydraulic line failure.
-
Dual Pneumatic / Electrical Disc Brakes: The swinging main arm incorporates fail-safe brakes that automatically engage during power loss to bring the gondola safely back to its dead-center rest position.
-
Anemometer Wind Monitoring: Wind sensors continuously track ambient wind speeds, automatically triggering operational holds if crosswinds exceed 15 m/s (33 mph).
Comparison: Fixed Park Models vs. Portable Pendulum Rides
| Engineering Parameter | Stationary Park-Model Pendulum | Portable Pendulum Rides |
| Setup Time | 3 – 5 Days | 1.5 – 2 Hours |
| Assembly Crew Needed | 6 – 8 Skilled Riggers + Crane Operator | 1 – 2 Operators |
| Lifting Equipment | 50-Ton Mobile Crane Required | None (Self-Erecting Hydraulic System) |
| Transport Footprint | 2 – 3 Flatbed Trailers / Freight Containers | 1 Integrated Highway Semi-Trailer |
| Highway Legality | N/A (Fixed location asset) | 17-Digit VIN, DOT/CE Air Brakes |
Profitability and ROI Analysis for Portable Pendulum Rides
Adding high-thrill [Anchor Text: "portable carnival rides for sale", Target: /mobile-carnival-rides-for-sale/] to a traveling fleet provides significant financial advantages:
-
Eliminating Heavy Lifting Fees: Eliminating crane rentals at 15–20 carnival spots per season yields $25,000 – $40,000 in direct operational savings.
-
Maximum Hourly Throughput: Fast passenger loading cycles and high rider capacities allow operators to process hundreds of riders per hour during peak carnival times.
-
Reduced Fuel Expenses: Variable Frequency Drive (VFD) technology controls the swing motor, reducing diesel generator fuel consumption during startup and operation by up to 25%.
📥 Download Portable Pendulum Ride Technical Spec Sheet (PDF)
Review full mechanical engineering schematics, hydraulic pressure ratings, dynamic load analysis, and trailer transport dimensions.
Selection Guidance When Purchasing Portable Pendulum Rides
When procuring mobile thrill rides, fleet managers should look beyond visual aesthetics and focus on structural integrity, hydraulic locking safety systems, and official highway VIN registration.
MODERN manufactures high-yield portable pendulum rides engineered for rapid hydraulic deployment and strict international safety compliance[cite: 1]. Contact our technical engineering team to discuss custom passenger capacity, theme design, and transport specifications for your upcoming operating season.
